Guide
1.How to use “Identify Copy” function?
2.How to use “Access Control Key” function?
3.What chip Lonsdor KH100 can simulate?
4.What chip Lonsdor KH100 can generate?
5.What key Lonsdor KH100 can generate?
6.Lonsdor KH100 can identify coil and how?
7.Lonsdor KH100 can detect remote frequency and how?
8.Lonsdor KH100 has special features
9.How to update Lonsdor KH100
Lonsdor KH100 function menu:
Identify Copy
Access Control Key
Simulate Chip
Generate chip
Generate key
Identify Coil
Remote Frequency
Special Function
Settings
1.How to use “Identify Copy” function?
2.How to use “Access Control Key” function?
Enter this menu, follow system prompts to operate (as shown).
3.What chip Lonsdor KH100 can simulate?
Simulate 4D chip
Simulate 46 chip
Simulate 48 chip
Put Lonsdor KH100’s antenna at the ignition switch(as shown), choose the corresponding chip
type to simulate.
4.What chip Lonsdor KH100 can generate?
4D
46
48
T5
7935
8A
4C
Others
Put the above chip into the induction slot(as shown), choose the corresponding chip to operate according to the prompts.
Note: some chip data will be covered and locked.
5.What key Lonsdor KH100 can generate?
Menu:
Generate Remote (Generating various type)
Generate smart key
1) Lonsdor KH100 generates Remote
Buick
Ford
GMC
Hammer
Cadillac
Chrysler
Lincoln
Chevrolet
Audi
BMW
Benz
VW
Jaguar
Land Rover
Opel
Skoda
Volvo
Honda
Toyota
Lexus
Suzuki
Mazda
Luxgen
Nissan
Acura
Kia
Baojun
Beiben H
Baic
Besturn
BYD
Changhe
Maxus
Dongfeng
Southeast
PLC
Steel Ma
Steel Lea

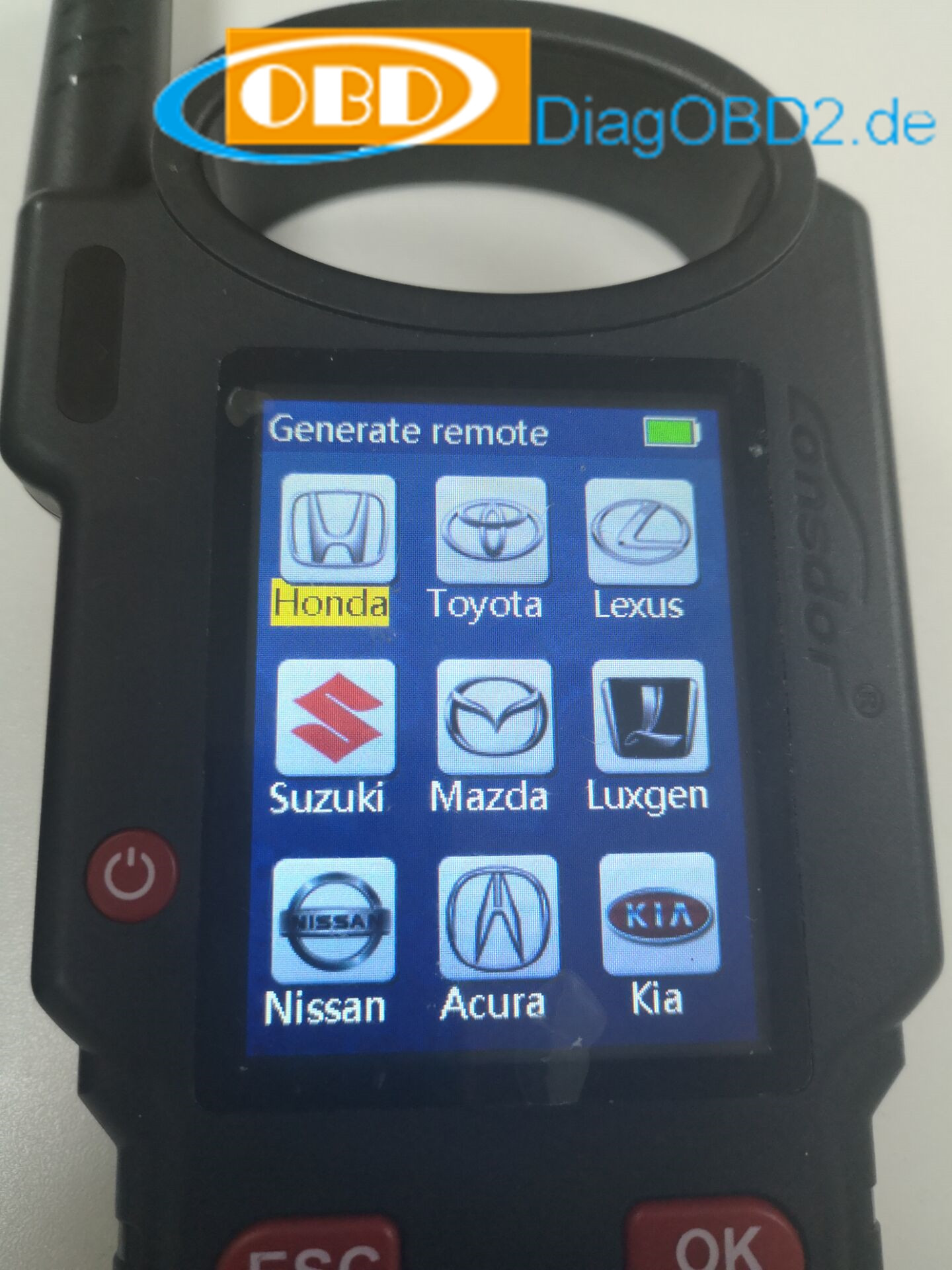

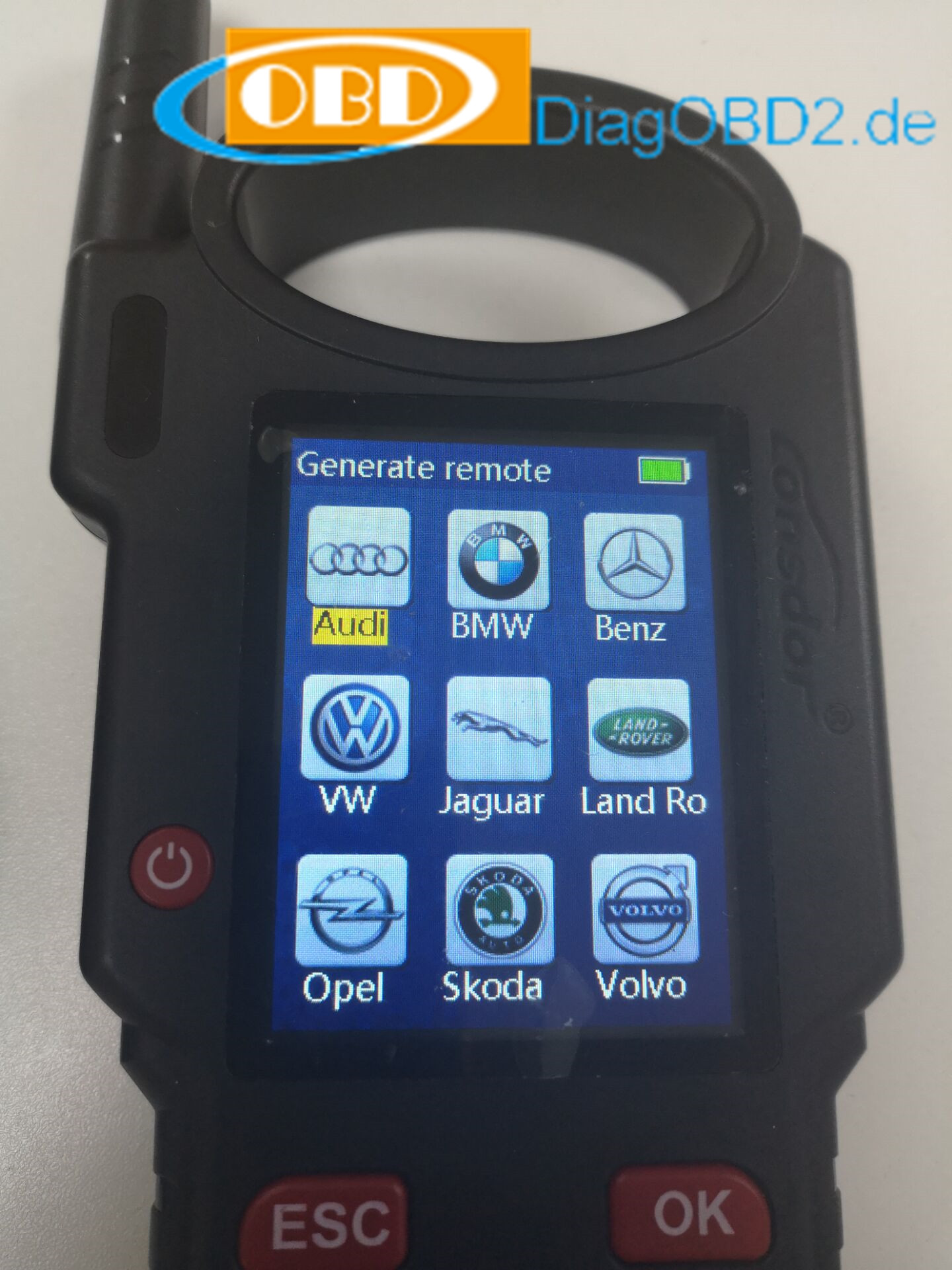

Enter [Generate key]->[Generate remote], choose the corresponding vehicle type to
generate remote control(as shown) according to different regions.
2) Lonsdor KH100 generates smart key
Jeep
Baic
BYD
Buick
Dodge
Southeast
Geely
Cadillac
Maserati
Enter [Generate key]->[Generate smart key] menu,choose the corresponding vehicle
type to generate smart key/card(as shown) according to different regions.
Put KH100 antenna close to the pre-determined position. If signals are identified, the device will continuously make sounds.
6.Lonsdor KH100 can identify coil and how?
1 Search smart induction area
Connect remote key with remote connector, Put KH100’s antenna close to the
pre-determined position. If inductive signal is identified, the device will continuously
make sounds, please check if the position is right(as shown below).
②Detect IMMO
Connect remote key with remote connector, Put KH100’s antenna close to key
identification coil, and use key to turn ignition ON. When KH100 buzzer beeps, it means
signal is detected.
7.Lonsdor KH100 can detect remote frequency and how?
Enter this menu, put remote control at the device’s induction area to detect remote frequency.
8.Lonsdor KH100 has special features
Detect Infrared signal
Toyota smart key (Unlock Toyota smart key)
Garage door
Fixed code remote copy
Fixed code remote editing
and more…
1) Detect infrared signal
Put remote control at the infrared signal detection area, press the remote’s button
once. When the light on KH100’s screen is on, it indicates there is infrared signal,
otherwise there is no signal(see below pic).
(signaled)
(no signal)
2) Unlock Toyota smart key
Put in smart key, click OK to operate.
Enjoy
9.How to update Lonsdor KH100?
Enter settings menu, and connect the device to network, then choose [check for
updates], one-click online upgrade.
